Replace the material of selected parts
Start
Pro
Description
A feature for quickly replacing materials in the entire 3D model or only in selected parts. This function can be used for part or panel materials, as well as for changing the edge banding. Both buttons open the corresponding dialog box for replacing materials.
When you click OK, Para-Flex searches for all items containing the corresponding old material and updates them with the new value. For Pro and CAM users: if necessary, the thickness and colors/textures are also updated automatically.

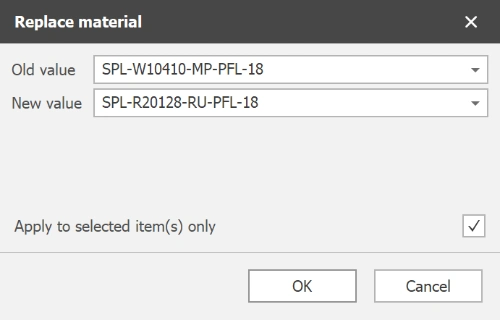

The existing material (which needs to be replaced) is placed in the top selection box, and the new material (which needs to be applied) in the bottom selection box. All available materials in the Scene are visible in the drop-down lists. So, if necessary, first add a material from a database to the Scene.
Conditions
– Apply yo selected item(s) only is only available when a selection is active.
Tip
To rename items in IronCAD (for example, in the catalogs and the Scene Browser), first select an item and then click on it again.
